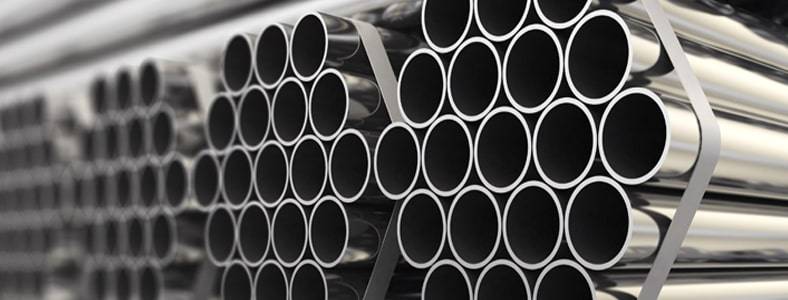

What are ASTM A312 TP310S Stainless Steel Seamless Pipes?
ASTM A312 covers seamless and welded austenitic stainless steel pipe for high-temperature and corrosive service. TP310S sits as the low-carbon version of SS 310, holding carbon below 0.08% against the standard grade's 0.25% cap, which limits sensitization near weld zones. Seamless manufacturing draws the pipe from a solid billet, leaving no fusion line for scale or oxide to attack. That suits furnace tubing and radiant coils exposed to sustained heat, which is why ASTM A312 TP310S stays in demand for heat-resistant piping.
Features of SS 310S Seamless Pipes
SS 310S Seamless Pipes hold up under conditions that push standard grades past their limits.
Excellent Oxidation Resistance: High chromium content forms a stable oxide layer, resisting scaling in air near 1150°C.
High-Temperature Strength: The alloy keeps mechanical strength well past 800°C, where many austenitic grades lose load capacity fast.
Superior Corrosion Resistance: Chromium and nickel resist oxidizing acids, sulfur-bearing gases, and carburizing atmospheres in process furnaces.
Excellent Weldability: Low carbon limits carbide precipitation at the weld zone, so joints hold strength without post-weld heat treatment.
Good Ductility: The pipe bends and forms without cracking, useful during fabrication of coils and fittings.
High Creep Resistance: Under sustained load at elevated temperature, the pipe resists slow deformation better than 304 or 316 grades.
Long Service Life: Combined oxidation and creep resistance stretch out replacement cycles in furnace service.
Dimensional Accuracy: Seamless production holds tight tolerances on wall thickness and roundness along the pipe length.
Low Maintenance Requirements: Scale and corrosion resistance cut down inspection and cleaning intervals in high-heat service.
Specifications of Stainless Steel 310S Seamless Pipes
The specifications of Stainless Steel 310S Seamless Pipe are constant for each of the sizes, thickness, and finish.
ASTM/ASME Standards
Pipes are manufactured to ASTM A312 and ASME SA312, covering composition limits and mechanical property requirements.
Pipe Sizes
Sizes range from 1/8 inch NPS up to 24 inch NPS, covering instrumentation lines through process headers.
Outside Diameter
OD follows standard NPS tables, matching fittings and flanges across common schedules.
Wall Thickness
The thickness of the wall ranges from Schedule 5S to XXS, based on design pressure and service temperature.
Schedules
The common schedules are 10S, 40S, and 80S, with heavier schedules available for higher-pressure-duty applications.
Lengths
Standard lengths come in single random (5 to 7 meters) and double random (up to 12 meters), with cut lengths on request.
End Types
Pipes ship with plain ends or beveled ends, depending on the downstream welding need.
Surface Finish
Finish options include mill finish, pickled and passivated, and polished, chosen by application.
Applications of SS 310S Seamless Pipes
Industrial sectors utilize these piping systems for specialized high-temperature and heavy corrosive processes.
Heat exchangers
These pipes transfer thermal energy between fluids, withstanding severe temperature gradients and aggressive media.
Furnaces
The components of industrial furnaces need to be very heat resistant and not be subjected to damage from oxidation when combusting.
Petrochemical plants
The material prevents rapid degradation from corrosive chemicals and elevated temperatures during heavy refining processes.
Oil and Gas
Extraction and refining sectors safely contain hazardous unrefined hydrocarbons under high pressure using these materials.
Power generation
The piping forms an integral part of the mechanical strength for continuous thermal cycling and high-pressure steam conveyance.
Food processing
The hygienic surface keeps food products safe from contamination and withstands the harshness of cleaning and the steam sterilization process.
Chemical processing
Acidic reactions need stable containment in order to manage industrial solvents that have high acidity without affecting chemical purity.
Cement plants
Heavy machinery operations generate immense heat, where this robust alloy handles abrasive conditions effectively.
Boilers
This steel grade prevents scale formation and sudden tube failures in large industrial boiler systems.
Thermal processing equipment
Industrial ovens rely on these pipes for structural supports that survive continuous high-temperature exposure.
Why Choose SS Seamless Pipes Over Welded Pipes?
The pressure ratings are higher than those of the welded pipe of the same wall thickness for stainless steel seamless pipes, as there is no weld seam to be a weak point. This has the same effect on leak resistance, particularly under pressure cycling. Strength remains uniform throughout the circumference, an important consideration if welded joints experience accelerated creep at the fusion line. When downtime costs more than the pipe, seamless pipe is the preferred pipe for furnace piping, boiler tubing, and others because of its longer service life.
Testing, Inspection & Quality Assurance
Each batch is subjected to hydrostatic testing, which will identify if there are any leaks when the testing is performed at a pressure beyond the rated service pressure. The Cr and Ni content is confirmed before dispatch by PMI testing. Visual inspection will not detect subsurface flaws, which are detected by ultrasonic and eddy current testing. Mechanical properties are confirmed by hardness, flattening, and flaring tests. Surface finish and dimensions are checked visually, and a third-party inspection (TUV, BV, or SGS) can be arranged upon request.
Why Choose Silver Tubes?
Silver Tubes is a trusted supplier of ASTM A312 TP310S Seamless Pipes with ready stock in common sizes, which reduces the lead times on standard orders. Custom fabrication includes nonstandard diameters and lengths to custom drawings. Competitive pricing is maintained on both small and large purchases with delivery to sites all over India and export shipments internationally. We are one of the leading ASTM A312 TP310S SS Seamless Pipe suppliers in India. We ensure each and every batch of ASTM A312 TP310S SS seamless pipes is subjected to stringent quality control before dispatch, and our expert team helps in selecting the appropriate piping alloy.
